Switches
TOGGLE SWITCH - ON/OFF 2 BLADES, SPST
TS571Q
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-Off
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Two 1/4" blade terminals.
TOGGLE SWITCH - ON/OFF/ON 3 SCREWS, SPDT
TS573
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-Off-On
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Three screw terminals.
TOGGLE SWITCH - ON/ON 3 SCREWS, SPDT
TS572
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-On
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Three screw terminals.
TOGGLE SWITCH SAFETY COVER RED - ON/OFF SWTICHES
TSC1
- Standard handle, toggle switch safety cover.
- Prevents accidental actuation.
- Spring loaded design with a steel faceplate and plastic cover.
- For use with on-off toggle switches.
- Red in color.
TOGGLE SWITCH - ON/OFF 4 SCREWS, DPST
TS574
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-Off
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Four screw terminals.
TOGGLE SWITCH BOOT - SILICONE 15/32 THREADS SHORT HANDLE
TSB
- Short handle, toggle switch boot.
- 15/32 threads.
- Tough rubber silicone covers are UV-resistant.
- Protect switches from moisture, dust and dirt.
- Screws onto most toggle switches.
- Rated at -40°F to 356°F.
TOGGLE SWITCH - ON/OFF/ON 6 SCREWS DPDT
TS577
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-Off-On
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Six screw terminals.
TOGGLE SWITCH - ON/ON 6 BLADES, DPDT
TS576Q
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-On
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Six 1/4" blade terminals.
TOGGLE SWITCH - ON/ON 6 SCREWS, DPDT
TS576
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-On
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Six screw terminals.
TOGGLE SWITCH-M(ON)-OFF-M(ON) 3 SCREWS SPDT
TS575
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: MOMENTARY ON-OFF-MOMENTARY ON
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Three screw terminals.
TOGGLE SWITCH - ON/OFF 4 BLADES, DPST
TS574Q
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- The frame and supports are made from zinc plated steel.
- Has a black phenolic base.
- Recommended mounting hole is .500" diameter.
- Circuitry: Momentary On-Off-Momentary On
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Four 1/4" blade terminals.
TOGGLE SWITCH BOOT - SILICONE 15/32 THREADS SHORT HANDLE 100/BAG
TSB-100
- Short handle, toggle switch boot.
- 15/32 threads.
- Tough rubber silicone covers are UV-resistant.
- Protect switches from moisture, dust and dirt.
- Screws onto most toggle switches.
- Rated at -40°F to 356°F.
SINGLE POLE BATTERY SWITCH 6-36 VOLTS DC, 175 AMPS CONTINUOUS, SILVER CONTACTS
XCH2484
- Battery master disconnect switch.
- Two positions: Off-On
- For 6-36 volt DC systems.
- Will disconnect the battery circuit only.
- Electrical rating of 1000 Amps intermittent, 175 amps continuous.
- Copper contacts.
TOGGLE SWITCH, ON/OFF, SPST, 2 SCREWS
XCH5520
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- Standard bat handle.
- Mounting stem is 15/32" threads.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-Off 2 screw terminals, o ring seal
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Two screw terminals.
TOGGLE SWITCH, ON/OFF, SPST, 2 SCREWS
XCH5582
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- Standard bat handle.
- Mounting stem is 15/32" threads.
- Recommended mounting hole is .500" diameter.
- Circuitry: On-Off 2 screw terminals.
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Two screw te\rminals.
TOGGLE SWITCH, ON/OFF, SPST, 2 WIRES, PVC COATED
XCH5582-10
- Heavy duty toggle switches.
- Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
- Standard bat handle.
- Mounting stem is 11/32" threads.
- O ring seal.
- Circuitry: On-Off.
- Single pole, double throw.
- Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
- Two 8" wire leads.
- Switch is PVC coated.
PUSH-PULL SWITCH, OFF/ON, TWO 12" WIRES, 6-36 VOLTS DC
XCHM-606
- Brass housing, plasticized.
- Two insulated copper wire leads, 12" long.
- Chrome-plated brass knob.
- 10-32 thread.
TOGGLE SWITCH ON-OFF-ON LIGHTED PADDLE 15A
XCLT-1561-111-012
- Clear nylon lighted
- SPDT
- On-off-on
- Five, 1/4" blade terminals
- Amp rating: 10 amps @ 250VAC, 15 amps @ 125VAC
POLLAK MOMENTARY START/STOP SWITCH
XP24-360
- Momentary push button switch.
- For trucks, tractors, farm, marine, industrial applications.
- Function by having the plunger to make electrical contact.
- Circuitry: Off-On.
- Normally off, push to on.
- Contact rating: 14 volts DC, make 70 amps, break 20 amps inductive load.
- Contact rating: 28 volts DC, make 35 amps, break 10 amps inductive load.
- Mounting stem, 5/8-32" diameter, 5/8" long.
- Accomodates panels up to 1/4" thick.

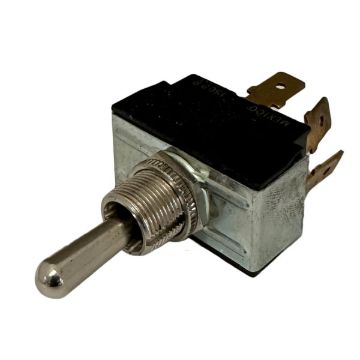

POLLAK TOGGLE SWITCH ON-OFF WEATHER RESISTANT
XP34-571C
- On-off
- SPST
- Two wire leads
- Weather resistant plastic coating with o-ring in stem
- Rated 20 amps, 12 Volts DC
